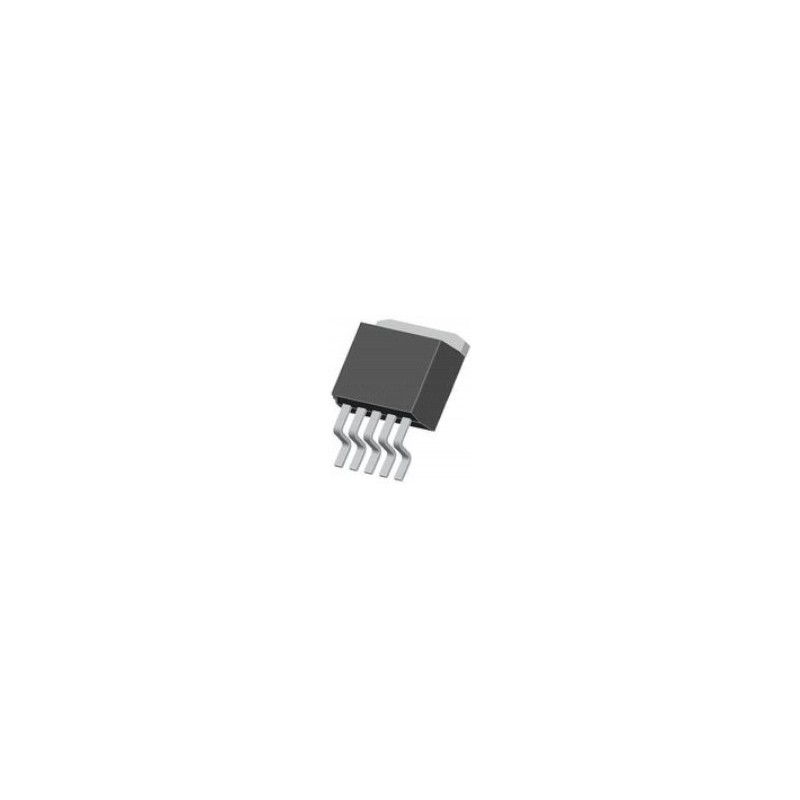

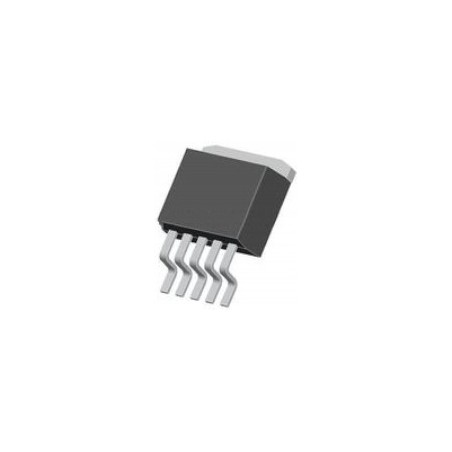

XL2596 5V TO263-5L XL2596S-5.0E1 not adjustable
€1.37
VAT included
delivery in Poland 1-2 dni InPost
XL2596S-5.0E1 (XL2596 5V TO263-5L) - DC-DC BUCK converter
Note ! XL2596 series are available in voltage versions 3.3V, 5.0V, 12V, ADJ (adjustable)
Note ! XL2596 series chips come in TO263-5L, TO220-5L housing versions
Basic parameters:
- Supply voltage range 4.5V - 40V
- Voltage output versions 3.3V, 5V, 12V and adjustable
- Adjustable output voltage range 1.23V - 37V
- Maximum duty cycle 100%
- Minimum voltage drop 1.5V
- Operating frequency 150KHz
- Max. operating current 3A
- Built-in power transistor
- High efficiency
- Very fine adjustment of output parameters
- Can be switched off by TTL signal
- ON/OFF pin with hysteresis function
- Built-in overheat protection
- Built-in short-circuit protection
- Catalogue name: XL2596T-ADJE1 XL2596T-3.3E1 XL2596T-5.0E1 XL2596T-12E1 XL2596S-ADJE1 XL2596S-3.3E1 XL2596S-5.0E1 XL2596S-12E1
Popular use:
- LCD monitors and TVs
- Digital photo frames
- Decoders, tuners
- Modems, routers
- Telecommunications equipment
See the "additional information" section for product specifications.
K110/XLSEMI(ID46303290)
90 Items
5905427013136
The product was placed on the market within the EU before December 13, 2024.
High Voltage and Current – This component can operate at high voltages and currents, posing a risk of electric shock. Pay attention to the maximum voltage and current values, as well as appropriate markings indicating these limits.
Caution During Installation – Ensure that the components are correctly mounted in the circuit, as improper connections can lead to overheating, damage, or fire.
Hot Components – Electronic components may heat up during operation, so it is important to follow the recommendations regarding the maximum operating temperature. Appropriate heat sinks or cooling systems should be used to ensure effective heat dissipation. Caution should also be exercised to avoid burns.
Swallowing Hazard – Small fastening components, such as screws, nuts, or washers, can pose a choking or swallowing hazard, especially for children. They should be stored in a place out of reach of children.
Spreading of Small Components – These components can pose a tripping or loss hazard during work. They should be stored in containers that prevent spillage.
