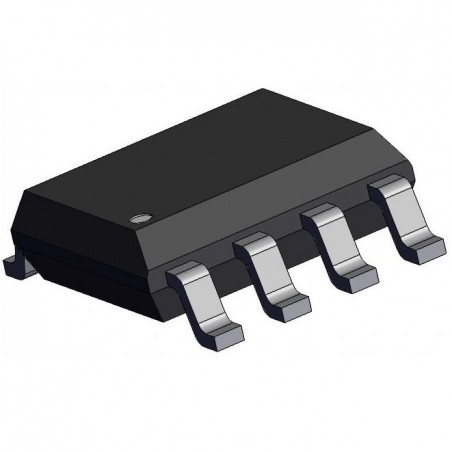

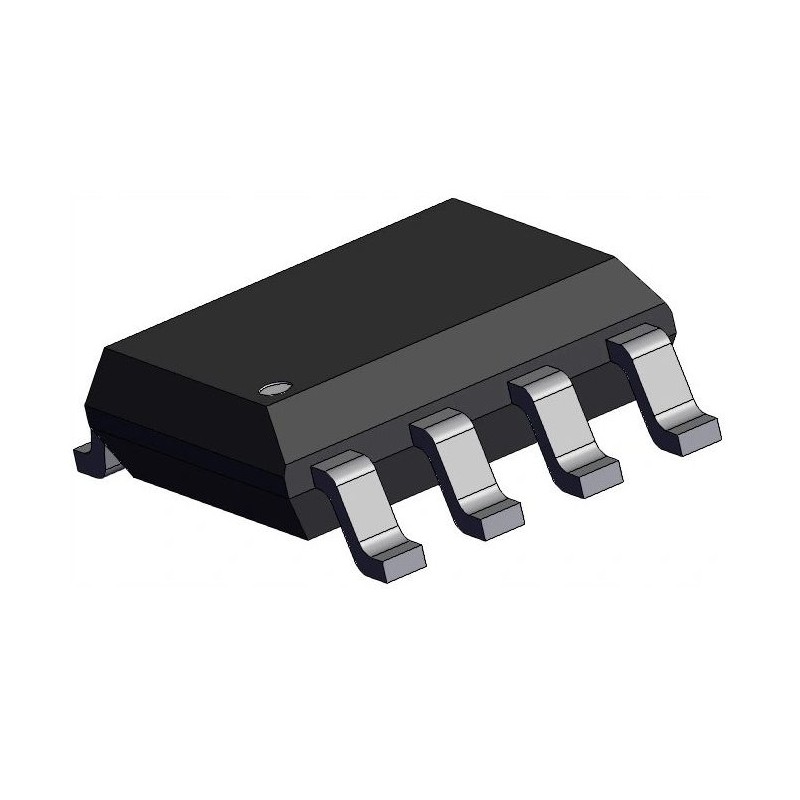

XL1509 SOP8 XL1509-5E1 ver. 5V original dys FV

zł2.28
delivery in Poland 1-2 dni InPost

Volume discounts

Quantity Unit price You Save
20 zł2.25 zł0.46
40 zł2.23 zł1.82
60 zł2.21 zł4.10
100 zł2.16 zł11.38
Quantity
Available in Polish warehouse

Place an order within 04h 06m 21s And we will send your order today
help_outlineAsk about product
XL1509 SOP8 XL1509-5E1 ver. 5V original dys FV

XL1509 SOP8 XL1509-5E1 ver. 5V original dys FV

I accept privacy policy rules

PRICE APPLIES TO 1 PIECE (5V version)

We are a distributor of Shanghai Xinlong Semiconductor Technology Co., Ltd.

XL1509-5E1

Basic parameters:

  • Supply voltage range 4.5V - 40V
  • Voltage output version 3.3V, 5V, 12V and adjustable
  • Output voltage regulation in the range of 1.23V - 37V
  • Maximum duty cycle 100%
  • Minimum voltage drop 1.5V
  • Operating frequency 150KHz
  • Max. operating current 2A
  • Built-in power transistor
  • High efficiency
  • Highly accurate adjustment of output parameters
  • TTL switchable
  • Pin ON/OFF with hysterical function
  • Built-in overheating protection
  • Built-in short-circuit protection
  • Catalog name: XL1509-5E1

Popular usage:

  • LCD Monitors and TV
  • Digital photo frames
  • Set-top boxes, tuners
  • Modems, routers
  • Telecommunication equipment

The system is available in voltage versions:

  • 3.3V
  • 5V - this version applies to this auction.
  • 12 volts
  • ADJ
181 Items
K362/XLSEMI(ID46303065)

Specific References

EAN
5905427014508

Download

XL1509 datasheet

Product Specifications

Download (213.8KB)
