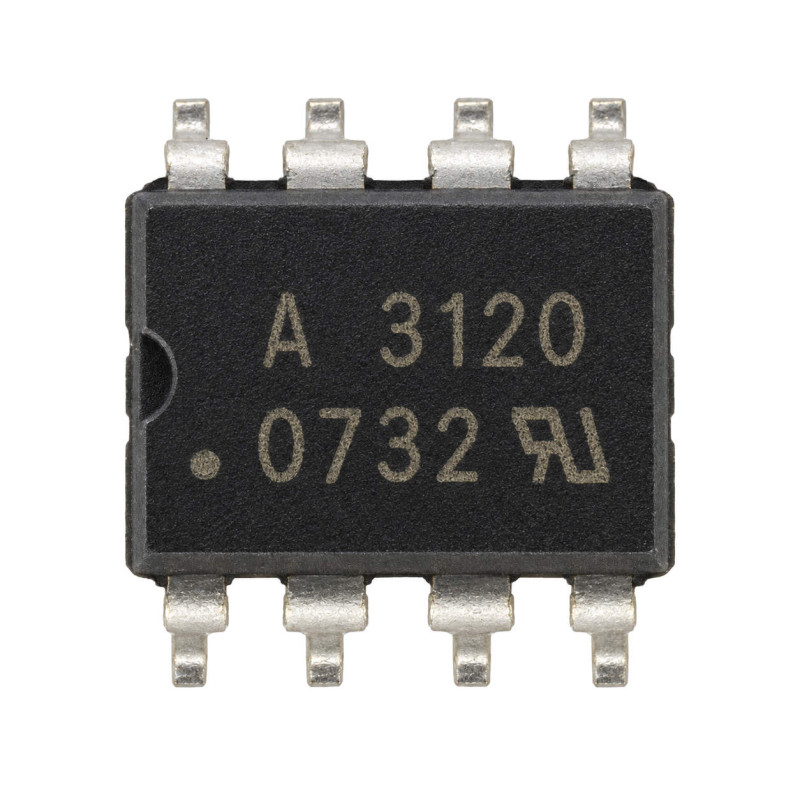

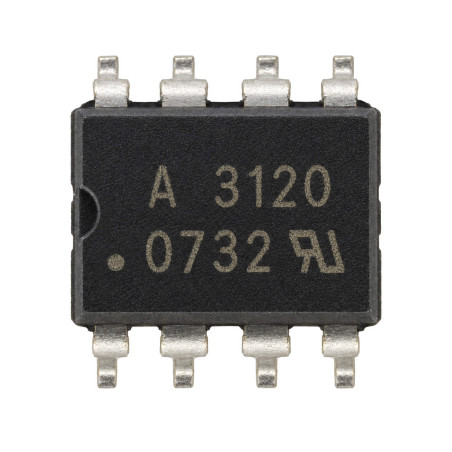

A3120 SMD SOP8 optoisolator HCPL3120 HCPL-3120

Name: A3120 SMD SOP8 optoisolator HCPL3120 HCPL-3120
Brand: superelektronika.pl
SKU: K1534/O1(ID47866257)
Price: 6.32 PLN
Availability: InStock

zł6.32

VAT included delivery in Poland 1-2 dni InPost

Volume discounts

Quantity	Unit price	You Save
20	zł6.26	zł1.26
40	zł6.19	zł5.06
60	zł6.13	zł11.38
100	zł6.00	zł31.60

Quantity

Available in Polish warehouse

Ask about product

PRICE CONCERNS 1 PIECE

Optoisolator A3120 HCPL3120 HCPL-3120

Maximum peak output current 2.5 A
Minimum peak output current 2,0 A
VCM = 1500 V
Output voltage 0.5 V (VOL)
Maximum supply current 5 mA
Under-voltage protection (UVLO) with hysteresis
Wide operating range VCC: 15 to 30V
Maximum switching speed 500 ns
Operating temperature range: -40 ° C to 100 ° C
!! SOP8 HOUSING !

DIP MOUNT VERSION ALSO AVAILABLE

Reference K1534/O1(ID47866257)

In stock 200 Items

EAN 5905042153231

Download

HCPL3120 datasheet

Product Specifications

Download (254.02KB)
