Stepper motor 28BYJ-48 + ULN2003 V3 + 6 x dupont
zł30.09
VAT included

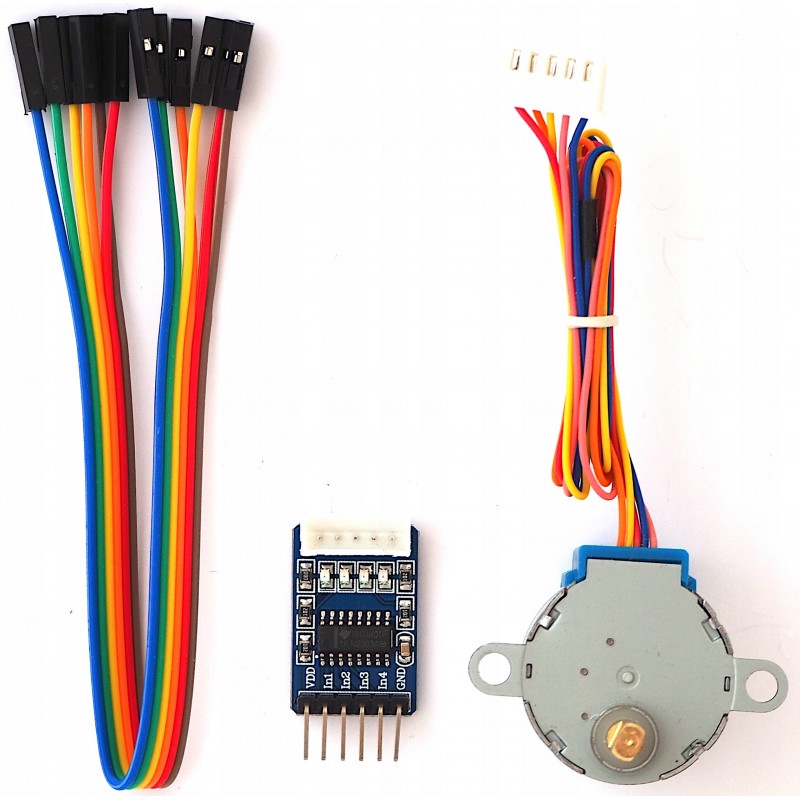

1x Stepper motor 28BYJ-48 + ULN2003 V3 + 6 x dupont
The kit offered includes :
- 1x Stepper motor 28BYJ-48
- 1x ULN2003 V3 controller
- 6x dupont female jumper
Technical specifications of the 28BYJ-48 stepper motor :
- 4 phases
- 5V power supply
- Connection cable length approx. 23cm
- Built-in gearbox (ratio: 64:1)
- Coil resistance 50 Ω
- Shaft diameter 5mm with bevels
- Holding torque at gearbox output: 0.3 kg*cm (0.03 Nm)
- Connector XH-05
- Mounting screw spacing 35mm
- Dimensions 25x19mm
- Weight 37g
Technical specifications of the 28BYJ-48 stepper motor driver module
- The module with the ULN2003 driver allows control of the direction of rotation and speed of 4-phase stepper motors.
- Power supply 5V
- Maximum current / channel 500 mA
- Control signals output on popular goldpin connectors for easy connection to Arduino
- LED indication of operating status
- Connector XH-05 + 6x dupont
- Four input pins - IN1...IN4 for Arduino
- Circuit supply current 10mA
- Maximum loss power 5W
- Dimensions 40.5x23mm
- Weight 2.7g
DuPont cable specifications
- Wire colour random
- Number 6
- Female to female wires
- Length approx. 20cm
- Weight 4.4g
We offer additional dupont wires, goldpin ladders, screws
K642/SK(ID47866147)
4841551940911
The product was placed on the market within the EU before December 13, 2024.
High Voltage and Current – This component can operate at high voltages and currents, posing a risk of electric shock. Pay attention to the maximum voltage and current values, as well as appropriate markings indicating these limits.
Caution During Installation – Ensure that the components are correctly mounted in the circuit, as improper connections can lead to overheating, damage, or fire.
Hot Components – Electronic components may heat up during operation, so it is important to follow the recommendations regarding the maximum operating temperature. Appropriate heat sinks or cooling systems should be used to ensure effective heat dissipation. Caution should also be exercised to avoid burns.
Swallowing Hazard – Small fastening components, such as screws, nuts, or washers, can pose a choking or swallowing hazard, especially for children. They should be stored in a place out of reach of children.
Spreading of Small Components – These components can pose a tripping or loss hazard during work. They should be stored in containers that prevent spillage.
