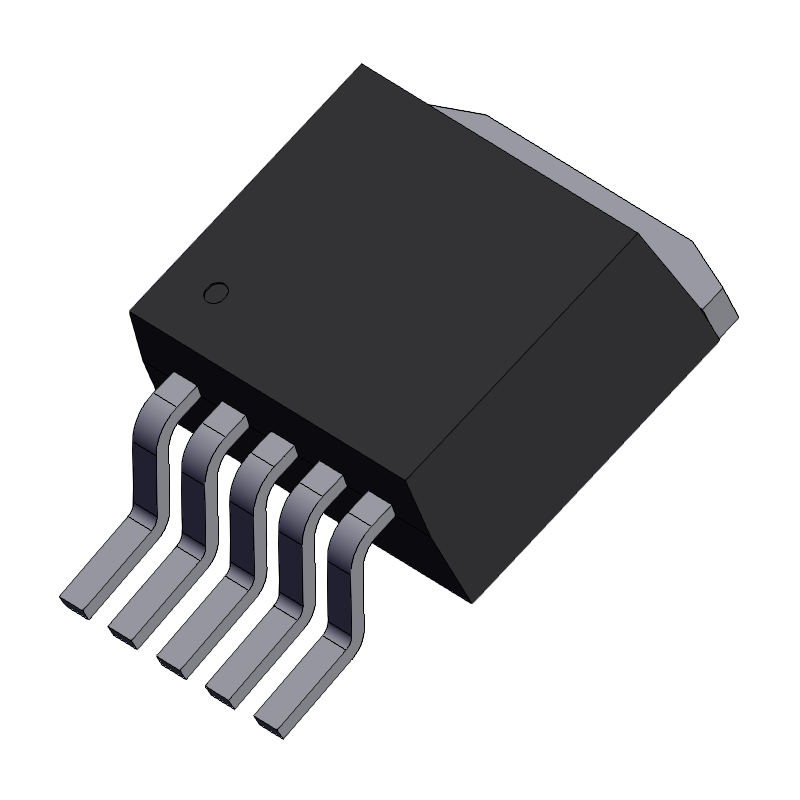

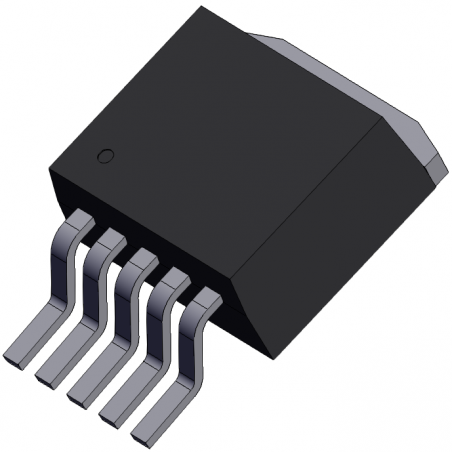

XL4015 XL4015E1 TO263-5L original - distributor FV

PRICE APPLIES TO 1 PIECE

We are a distributor of Shanghai Xinlong Semiconductor Technology Co., Ltd.

XL4015 - BUCK DC-DC Converter

Basic parameters:

• Supply voltage range 8V - 36V
• Adjustable voltage output version
• Output voltage regulation in the range of 1.25V - 32V
• Maximum duty cycle 100%
• Minimum voltage drop 0.3V
• Operating frequency 180KHz
• Max. operating current 5A
• Built-in MOSFET
• High efficiency up to 96%
• Highly accurate adjustment of output parameters
• TTL switchable
• PIN EN with hysterical function
• Built-in overheating protection
• Built-in short-circuit protection
• Catalog name: XL4015E1

Popular usage:

• LCD Monitors and TV
• Power supplies
• Network and telecommunications equipment

In the "attachments" section, the product specification and layout of the prototype board.
