RT8249CGQW RT8249 2N DC/DC step-down LDO 5V 3.3V WQFN-20L 3x3 SKIPSEL
zł16.38
VAT included
delivery in Poland 1-2 dni InPost
Two-channel synchronous DC/DC step-down controller with integrated 5V 3.3V LDO stabilisers RICHTEK RT8249CGQW
- Model RT8249CGQW
- Designation 2N
- Supports Connected Standby mode for Ultrabooks
- CCRCOT control with 100 ns load response time
- Maximum PWM fill factor > 98%
- Input voltage range: 5V to 25V
- Output voltage range: 2V to 5.5V
- 5V/3.3V LDO regulators with 100mA output current
- 1% accuracy on LDO 3.3V output
- Oscillator control output for charge pump applications
- Built-in frequency setting:
RT8249A/B: 400kHz/475kHz (CH1/CH2)
RT8249C: 500kHz/600kHz (CH1/CH2) Built-in soft start and soft discharge
- Current measurement by resistance R_DS(ON) with temp. factor of 4700 ppm/°C
- Independent control of inverter switching
- Protections: OVP (overvoltage protection), UVP (undervoltage protection), OCP (overcurrent protection), OTP (overheating protection)
- Non-blocking under-voltage protection (UVLO)
- Power Good Indicator
- 20-pin WQFN housing
- RoHS compliant and halogen-free

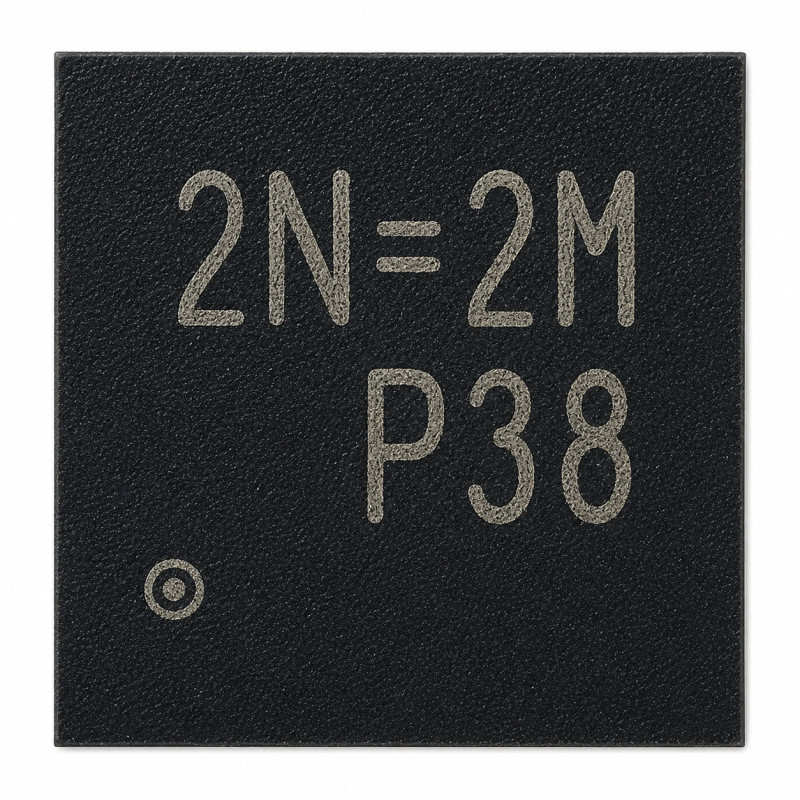

Photo real
Date code may vary
K1191/O(ID325763116)
98 Items
5905427019138
