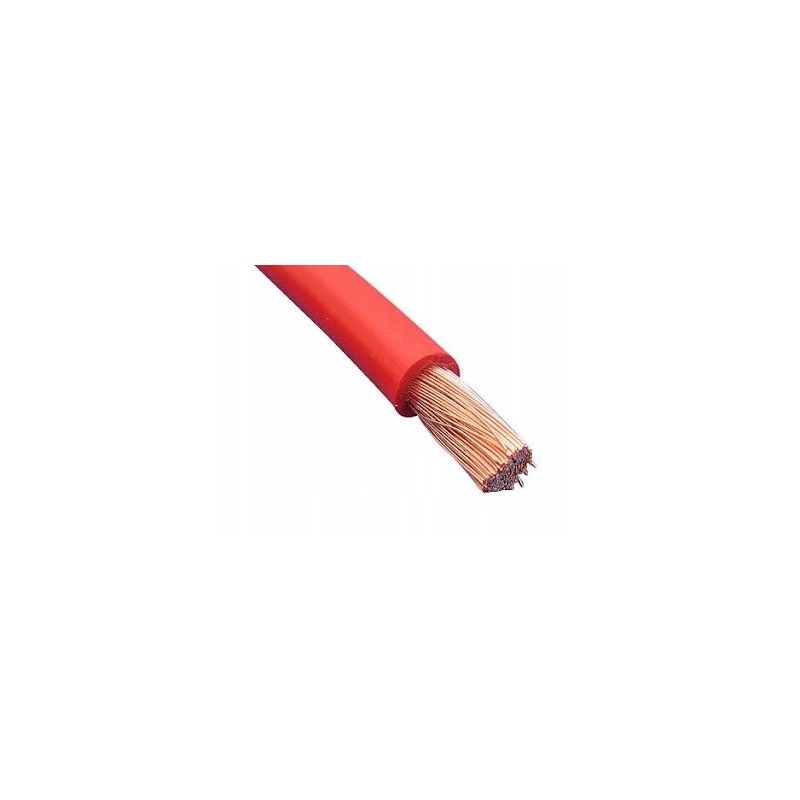

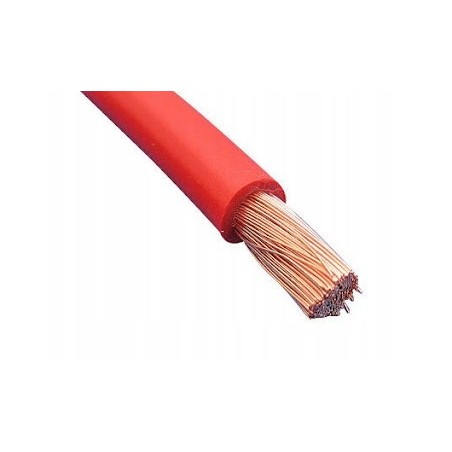

Cable Cable LGY H05V-K 0.5mm 50cm red

Price per 50cm of cable.

Cable sold in one piece (e.g.: 3x50cm = 150cm)

Single-conductor cable with a flexible conductor, general-purpose for permanent installation, with a PVC insulation. Recommended use: permanent protected connections inside equipment and inside or outside luminaires, suitable for laying in surface mounted or embedded installation tubes, for signalling or control circuits.

Standard PN-EN 50525-2-31:2011, PN-87/E-90054

Rated voltage 300/500 V

Number and rated cross-section of conductors 1 x 0.5

Multi-stranded flexible copper conductor , class 5, as per PN-EN 60228:2007

Insulation plain PVC

Insulation colour: Red

• Number and rated cross-section of conductors 1 x 0.5
• Largest rated stranded wire diameter 0.21mm
• Nominal insulation thickness 0.6mm
• Approximate outer diameter of the wire 2.5mm
• Max. wire resistance at 20C 39.0 Ω/km
• Max. insulation resistance at 70C 0.012 mΩ x km
• Approximate cable mass 9 kg/km

Permissible operating temperature according to PN-EN 50565-1:2014-11, PN-EN 50565-2:2014-11 on the cable surface: max. 70 ̊C

- working conductors at short circuit: max. 160 ̊C

- transport, installation, handling: min. -5 ̊C

- Storage: max. 40 ̊C
