Amplifier XH-A105 2x100W TDA7498 bluetooth TF AUX
zł132.38
VAT included
1x Amplifier module 2x100W TDA7498
the price is for 1 pc.

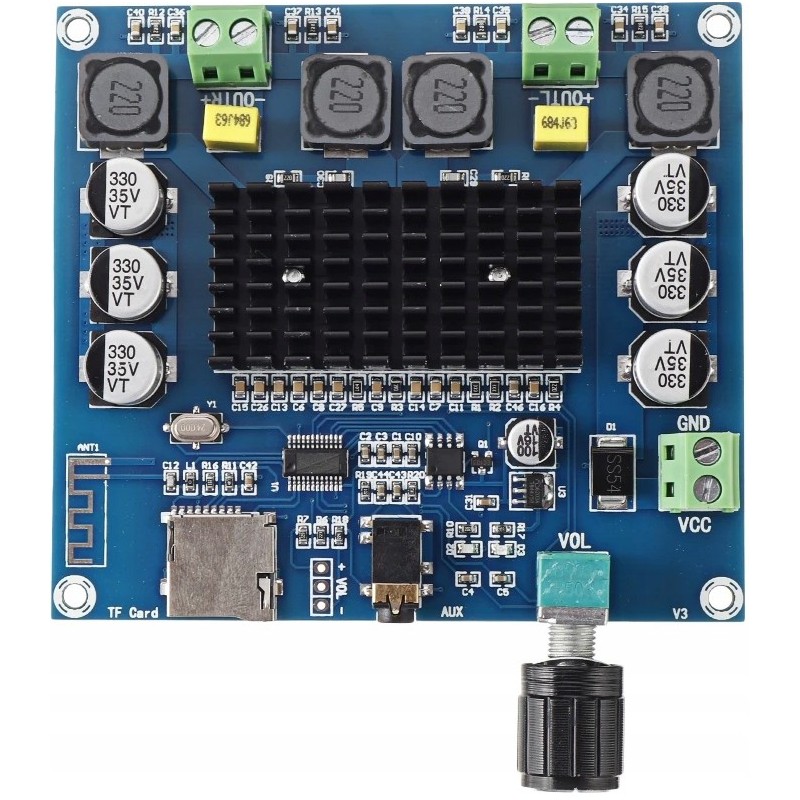

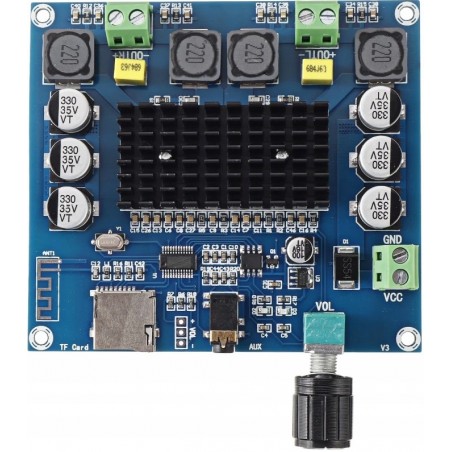

A complete stereo power amplifier based on the TDA7498 chip.
The amplifier has a built-in BLUETOOTH version 5.0 module, which allows for wireless music playback (e.g. using a phone, tablet, laptop).
Bluetooth 5th generation allows for lossless sound reproduction, which means that the quality of the reproduced music is better than with a wired connection.
The module also features :
- Volume potentiometer and metal black potentiometer knob included.
- AUX socket
- TF memory card slot - APE, FLAC, MP3, WAV, WMA formats playable
- Power supply screw socket 12V-30V (recommended 19V)
- 2x 4-8 ohm speaker screw socket
- Screw-on heat sink - not glued on
Specifications :
Model XH-A105
- Maximum output power 100-W + 100-W at THD = 10% speaker impedance RL = 6 Ω supply VCC = 36 V (supply voltage to output power graph with RL = 6 Ω impedance and THD = 10%)
- Operation class D
- Reproduction frequency 20Hz - 20KHz
- Operating voltage 12V - 30V
- Maximum current consumption 17A PEAK average 3.5A
- Dimensions 92x85x18mm
- Weight 90g
K404/WZ(ID46302947)
7906595229822
The product was placed on the market within the EU before December 13, 2024.
High Voltage and Current – This component can operate at high voltages and currents, posing a risk of electric shock. Pay attention to the maximum voltage and current values, as well as appropriate markings indicating these limits.
Caution During Installation – Ensure that the components are correctly mounted in the circuit, as improper connections can lead to overheating, damage, or fire.
Hot Components – Electronic components may heat up during operation, so it is important to follow the recommendations regarding the maximum operating temperature. Appropriate heat sinks or cooling systems should be used to ensure effective heat dissipation. Caution should also be exercised to avoid burns.
Swallowing Hazard – Small fastening components, such as screws, nuts, or washers, can pose a choking or swallowing hazard, especially for children. They should be stored in a place out of reach of children.
Spreading of Small Components – These components can pose a tripping or loss hazard during work. They should be stored in containers that prevent spillage.
