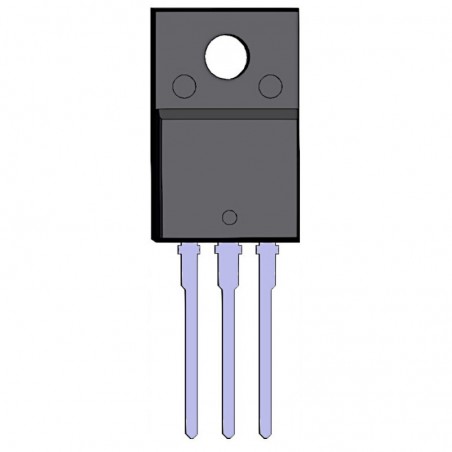

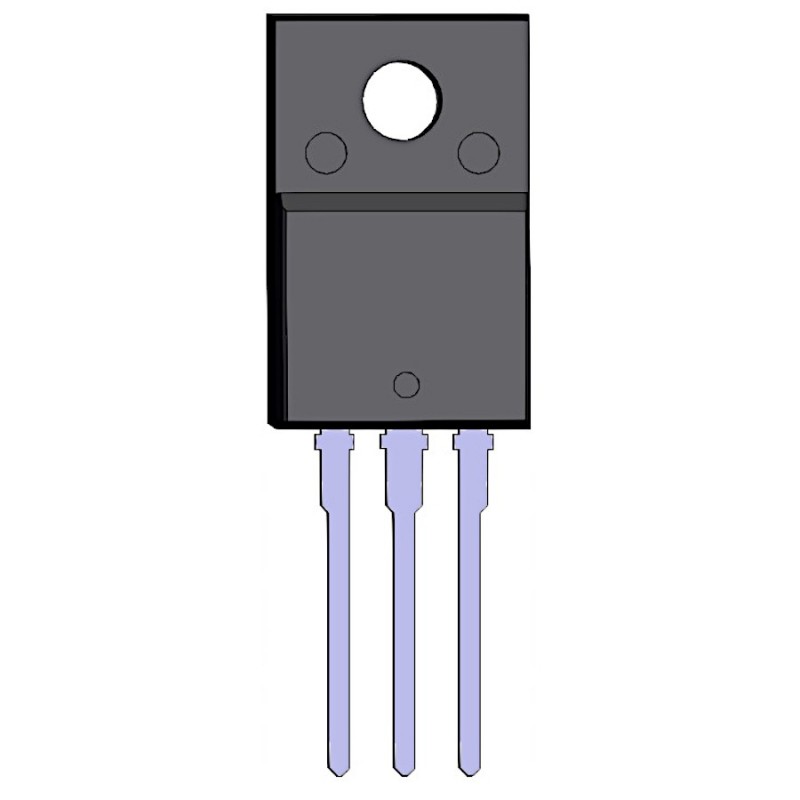

FQPF10N60C 10N60 tranzystor MOSFET 600V 9.5A TO220F
zł4.20
VAT included
delivery in Poland 1-2 dni InPost
FQPF10N60C to wysokonapięciowy tranzystor MOSFET typu N ,wykonany w technologii planarnych struktur DMOS (QFET).
- Model FQPF10N60C
- Oznaczenie FQPF10N60C
- Seria 10N60C
- Typ tranzystora: N-channel MOSFET
- Obudowa: TO-220F
- ID 9,5 A (ciągły, TC = 25°C),
- RDS(on) typ. 0,6 Ω, maks. 0,73 Ω (VGS = 10 V, ID = 4,75 A),
- niskie ładunki bramki: Qg typ. 44 nC (VDS = 480 V, ID = 9,5 A, VGS = 10 V),
- niska pojemność sprzężenia zwrotnego: Crss typ. 18 pF,
- szybkie przełączanie,
- 100% testów lawinowych (avalanche tested),
- ulepszona odporność dv/dt (szczytowe: 4,5 V/ns).
- VDSS: 600 V,
- ID (ciągły): 9,5 A (TC = 25°C) oraz 3,3 A (TC = 100°C),
- IDM (impulsowy): 38 A,
- VGSS: ±30 V,
- EAS (energia lawinowa, pojedynczy impuls): 700 mJ,
- TJ / TSTG: od -55°C do +150°C,
- PD (moc strat, FQPF10N60C): 50 W (TC = 25°C), derating 0,4 W/°C.
- VGS(th): 2,0 V do 4,0 V,
- IDSS: maks. 1 µA (VDS = 600 V, VGS = 0 V); maks. 10 µA (VDS = 480 V, TC = 125°C),
- pojemności (VDS = 25 V, VGS = 0 V, f = 1 MHz): Ciss typ. 1570 pF, Coss typ. 166 pF, Crss typ. 18 pF,
- czasy przełączania (VDD = 300 V, ID = 9,5 A, RG = 25 Ω): td(on) typ. 23 ns, tr typ. 69 ns, td(off) typ. 144 ns, tf typ. 77 ns.
- zasilacze impulsowe o wysokiej sprawności (SMPS),
- aktywna korekcja współczynnika mocy (PFC),
- stateczniki elektroniczne do lamp (topologia półmostka).
Odpowiedniki : 12N60, 10N60, TK13A60D, 10N65, STP24N60M2, FQPF10N60C, MMP60R360PTH, FQP10N60C, FHP12N60, 13N60A, STP18NM60N, STP18N60M2, STP13NM60N, STP13N60M2, NCE65TF130, MS14N60, IPP65R095C7, IPP65R065C7, IPP60R299CP, IPP60R280P7, IPP60R199CP, CEF12N65, 10N65K, TK25E60X, TK16E60W, TK12E60W, TK10E60W, STP28N65M2, STP18N65M2, STP11NM60N, STP10NM60N, SIF12N65C, PJP12NA60, OSG80R250PF, OSG65R290PF, OSG60R380PF, OSG60R150PF, NCE65T260, NCE65T180, IXKP24N60C5, IXKP20N60C5, IXKP13N60C5, IPP65R380E6, IPP65R190E6, IPP65R190C7, IPP60R280E6, IPP60R280C6, IPP60R165CP, HMS25N65, FCP16N60N, FCP13N60N, CS12N60, CM20N60F, CM12N60AF, CEP12N65, BLS60R360-P, AP10N70P, AOTF42S60, AOT15S60L, 16N60A, 12N70, XGP6510B, XGP6508B, XG65T125PS1B, WNM12N65, WMK28N60C4, WMK26N65C4, WMK25N65EM, WMK18N70EM, WMK18N65EM, WMK13N65EM, TSP60R190S2, TMPF12N60, TK14E65W, TK13A60W, TK12A65D, SVSP20NF60TD2, SVSP20N60TD2, SVSP11N65TD2, STP24N65M2, STP22NM60N, STP16N60M2, STP15NM60N, STP11NM60A, SSP70R300S2R, SSP70R300S2, SSP65R190S2R, SSP65R130S2, SSF18NS60, SSF11NS65, SMIRF16N65T2TL, SLP70R420S2, SLF70R420S2, SIHP15N60E, SIHP12N65E, SIHP12N60E, SIF12N60C, SFP1800N650C2, PTA12N60, OSS60R190PF, OSS60R099PF, OSG80R380PF, OSG70R500PF, OSG70R350PF, OSG65R420PF, OSG65R380PF, OSG65R360PEF, OSG65R200PF, OSG65R125PF, OSG60R260PF, OSG60R180PF, NCE70T360, NCE70T180, NCE70N380, NCE65TF180, NCE65T360, NCE65T130, NCE65N260, MSF14N60, MS15N60, MPSP70M290, MMP60R290PTH, MMP60R290PCTH, MMP60R195PCTH, IXKP10N60C5, IPP80R360P7, IPP65R225C7, IPP60R380E6, IPP60R380C6, IPP60R250CP, IPP60R180P7, IPP60R180C7, IPP60R160P7, IPP60R120P7, IPP60R120C7, IPP60R099C7, HMS15N60, HMS11N60, HFS12N60S, HFP12N60S, HCP90R450, HCP90R300, HCP65R320, HCP65R210, GP1M012A060XX, GC11N65T, FQP10N60, FMP60N280S2HF, FIR12N70FG, FCP380N60, FCP11N60N, DHSJ13N65, CS16N60FA9H, CS13N60F, CS12N65FA9H, CS12N65A8H, CS10N60P, BR12N60, BL12N65A-A, APT11N80KC3, AOTF12N60FD, AOT42S60, AOT27S60L, AOT27S60, AOT25S65L, AOT15S65L, AOT15S65, AOT15S60, AOT12N60FD, AOT11S65L, AOT11S65, 14N65, WMK28N65C4, WMK25N70EM, WMK13N70EM, TPP65R380C, TPP65R280D, TMP12N60, TMA10N60H, TK20D60T, TK17E80W, SVSP14N65TD2, SVSP11N60TD2, SVS65R240TD4, SVS60R190TD4, SVS20N60TD2, SVS14N65TD2, SVS14N60TD2, STP33N65M2, STP26N60M2, STP20NM65N, STP13N65M2, STP11NM65N, SSP70R380S2, SSP65R260S2, SSP60R260S2, SMIRF16N65T1TL, SM420R65CT2TL, SM360R65CT1TL, SLP65R420S2, SLP60R190S2, SL21N65C, NCE80T320, NCE70T260, NCE65TF360, MSF15N60, JFPC12N65C, IPP80R450P7, IPP65R380C6, HMS17N65, GWM13S65YRY, FTK10N60P, FQPF10N60CT, FCP380N60E, FCP170N60, F21F60CPM, DHSJ17N65, DHSJ11N65, CM12N65AF, BLS65R380-P, AOTF25S65, AOTF15S65, AOT42S60L, AOT25S65, XG65T230PS1B, WMK30N65EM, WMK26N60C4, WMK15N70C4, WMK15N65C4, WMK15N60C4, WMK14N70C4, WMK14N65C4, WMK14N60C4, WFP12N65S, TSP65R190S2, TPP70R450C, TPP60R350C, TPP60R160M, TMP12N65H, TMA12N65H, TK10E80W, SWP13N65K2, SVSP14N60TD2, SVS65R280TD4, SVS11N65T, SVS11N60TD2, STP28N60M2, STP16N65M2, STP12NM60N, SSP80R360S2, SSP70R450S2, SSP70R190S2, SSP65R420S2, SSP65R360S2, SSP65R260S2R, SSP65R190S2, SSP65R140SFD, SSP60R190S2, SSP60R130S2, SSF11NS65U, SSF11NS60, SRM20N65TC, SRM12N65TC, SPTP65R160, SM180R65CT1TL, SLP60R380S2, SL11N65C, SIHP11N80E, SE18NS65A, R6515ENX, R6511ENX, PTP12N60, OSG60R180FSF, NTP8G206N, NTP360N80S3Z, NCE70N290, NCE65N330, NCE65N290, NCE65N230, NCE65N180, NCE60R360, NCE60N390, MTN10N60E3, MSF10N60, MS10N60, MPSP65M260, MPSP65M170, MPSP60M370, MPSP60M160, IPP65R190C6, IPP65R125C7, HMS29N65, HMS28N65, HMS15N65, HMS11N65, HF12N60, HCP12NK65V, H12N60P, FQPF10N60CYDTU, FIR14NS65AFG, F16F60CPM, F11F60CPM, DJF420N70T, BLS70R420-P, BL12N65A-P, BL12N60A-P, BL10N60-P, AP10N70P-A, AOTF27S60, AOT450A70L, AOT380A60L, AOT380A60CL, AOT280A60L
Zdjęcie realne
Pomiar realny
K1372/FH(ID374750736)
360 Items
5905042151190
