4 x MIC 6A10 6A 1000V rectifier diode
zł4.18
VAT included
delivery in Poland 1-2 dni InPost
4 x MIC 6A10 6A 1000V rectifier diode
Set of 4 pieces of brand MIC 6A10 rectifier diode from one production run
- Diode type: Standard rectifier (axial)
- Voltage range (for 6A05 - 6A10 series): 50 - 1000 V
- Model: 6A10
- Quantity: 4 pcs
- Maximum operating voltage (VRRM): 1000 V
- Rated current: 6.0 A
- Sub-supplier: MIC Master Instrument Corporation
- Housing type: Plastic housing (axial, with colour coding of the cathode)
- Maximum peak reverse voltage (VRRM): 1000 V
- Maximum RMS voltage (VRMS): 700 V
- Maximum blocking voltage (VDC): 1000 V
- Average conduction current (I(AV)) at 60°C: 6.0 A
- Impulse peak current (IFSM): 300 A (8.3 ms, single half-period sine wave)
- Maximum conduction voltage (VF) at 6 A: 0.95 V
- Maximum reverse current (IR):
at 25°C: 10 µA
at 100°C: 1 mA
- Full cycle reverse current at TL=105°C (IR(AV)): 1 mA
- Typical junction capacitance (CJ): 150 pF (at 4 V and 1 MHz)
- Typical junction-to-junction thermal resistance (RθJA): 10°C/W
- Operating and storage temperature range (TJ, TSTG): -55°C to +150°C
- Enclosure material: Plastic with UL94V-0 epoxy resin (flame retardant)
- Mounting: Any position
- Lead-in pattern: min. 14mm
- Terminals: plated, solderable in accordance with MIL-STD-202E, method 208C
- Tip length: 24.5mm
- Housing length: 8.7mm
- Housing diameter: 8.5-9.1mm
- Lead diameter: 1-1.3mm
- Weight: 1.2g

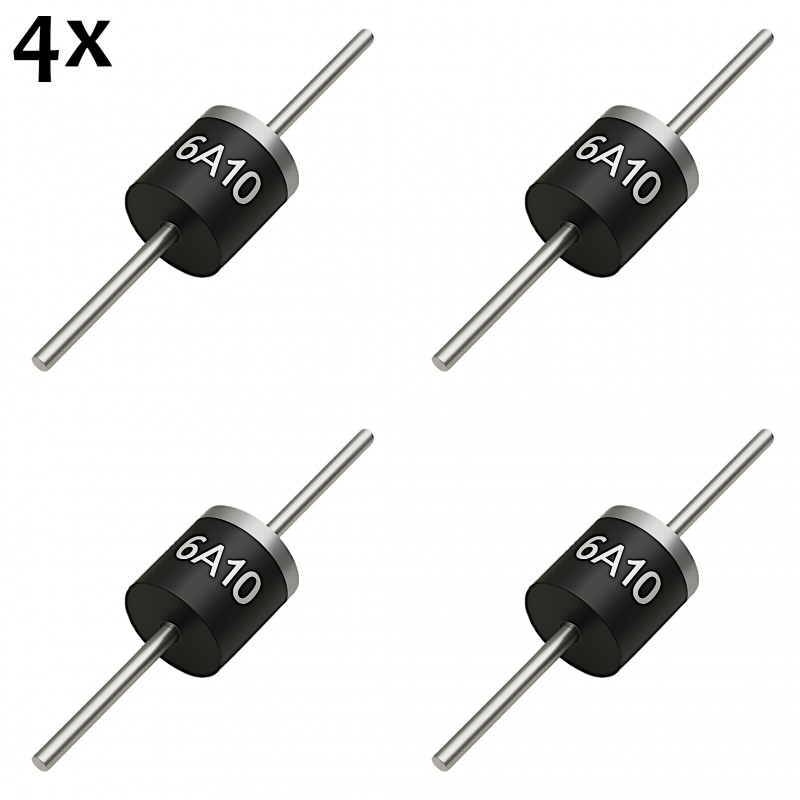

Realistic picture
K179/D(ID46303229)
400 Items
5905427016014
The product was placed on the market within the EU before December 13, 2024.
High Voltage and Current – This component can operate at high voltages and currents, posing a risk of electric shock. Pay attention to the maximum voltage and current values, as well as appropriate markings indicating these limits.
Caution During Installation – Ensure that the components are correctly mounted in the circuit, as improper connections can lead to overheating, damage, or fire.
Hot Components – Electronic components may heat up during operation, so it is important to follow the recommendations regarding the maximum operating temperature. Appropriate heat sinks or cooling systems should be used to ensure effective heat dissipation. Caution should also be exercised to avoid burns.
Swallowing Hazard – Small fastening components, such as screws, nuts, or washers, can pose a choking or swallowing hazard, especially for children. They should be stored in a place out of reach of children.
Spreading of Small Components – These components can pose a tripping or loss hazard during work. They should be stored in containers that prevent spillage.
