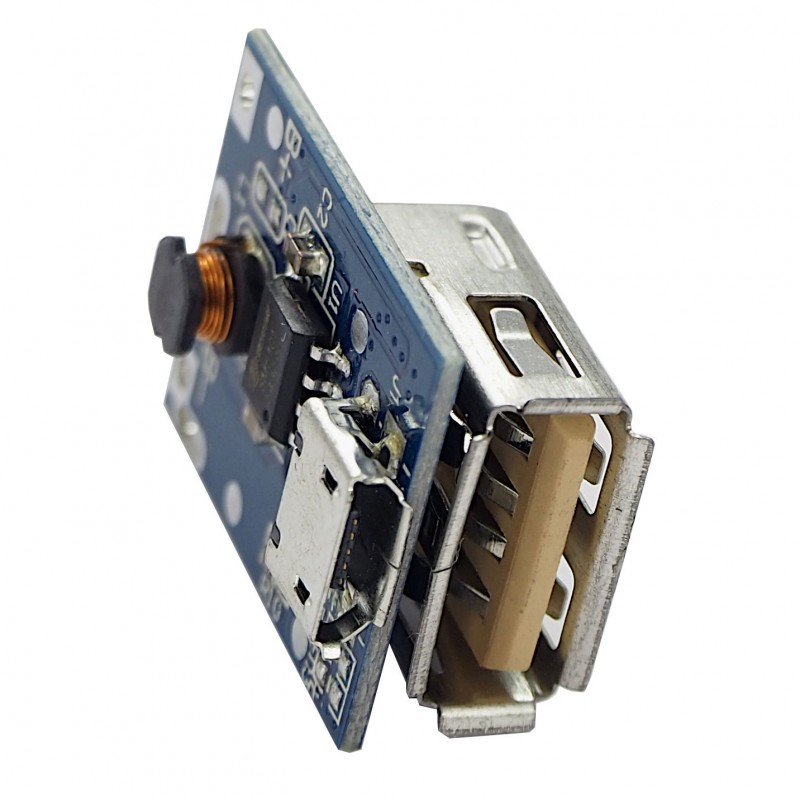

Powerbank mini USB charging control 18650 5V board
€1.17
VAT included
delivery in Poland 1-2 dni InPost
1x Mini USB powerbank module for 18650 package
USB powerbank charging control 18650 1A HT4928 model ST6845-C V1.0
An off-the-shelf module that can work as a simple powerbank or a 5V emergency power module.
The module can simultaneously charge its "own rechargeable battery" and charge a device connected to a USB socket.
Red LED indicating operating status :
- flashing - charging of the pack or device supplied via USB type A is in progress
- steady on - the pack or device powered via USB type A has been charged
- does not light connected - standby
Technical parameters :
- Input voltage: 3.7V ~ 5.5V
- Charging current: 1A (max)
- Output current: 1A (max)
- Output voltage: 5V
- Charging voltage MAX 4.2V
- Support for charging 0V packets
- Discharge voltage: 2,9V
- Efficiency: MAX 91%
- Standby current MAX 8uA
- USB type A connector - output
- Micro USB connector - power input
- Dimensions 17x21mm
- Weight 3g.
Safety features :
- Intelligent operating temperature management - the charger itself reduces the charging power to avoid overheating
- Removal, insertion, pack change - automatically wakes up the system for operation
- Over-discharge protection
- Over-discharge protection
